Container Specifications

  FLAT RACK 20' FLAT RACK 40'
INSIDE LENGTH 18'5" 5.61 m 39'7" 12.06 m
INSIDE WIDTH 7'3" 2.20 m 6'10" 2.08 m
INSIDE HEIGHT 7'4" 2.23 m 6'5" 1.95 m
TARE WEIGHT 5,578 lbs 2,530 kgs 12,081 lbs 5,479 kgs
MAX. CARGO 47,333 lbs 21,469 kgs 85,800 lbs 38,918 kgs

about Image

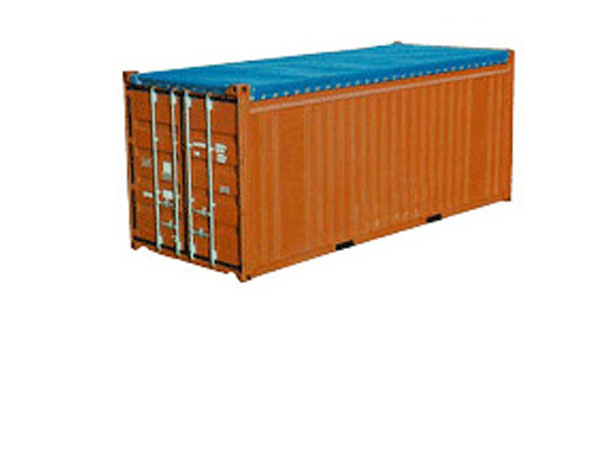

  OPEN TOP 20' OPEN TOP 40'
INSIDE LENGTH 19'4" 5.89 m 39'5" 12.01 m
INSIDE WIDTH 7'7" 2.31 m 7'8" 2.33 m
INSIDE HEIGHT 7'8" 2.33 m 7'8" 2.33 m
DOOR OPENING WIDTH 7'6" 2.28 m 7'8" 2.33 m
DOOR OPENING HEIGHT 7'2" 2.18 m 7'5" 2.26 m
CAPACITY 1,136 ft3 32.16 m3 2,350 ft3 64.54 m3
TARE WEIGHT 5,280 lbs 2,394 kgs 8,490 lbs 3,850 kgs
MAX. CARGO 47,620 lbs 21,600 kgs 58,710 lbs 26,630 kgs

about Image

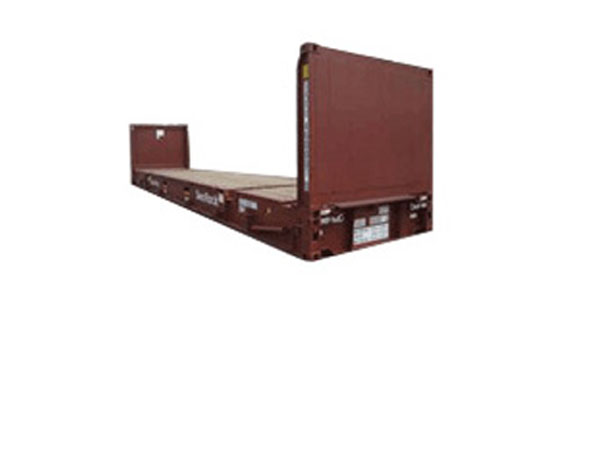

  FLAT RACK 20' FLAT RACK 40'
INSIDE LENGTH 18'5" 5.61 m 39'7" 12.06 m
INSIDE WIDTH 7'3" 2.20 m 6'10" 2.08 m
INSIDE HEIGHT 7'4" 2.23 m 6'5" 1.95 m
TARE WEIGHT 5,578 lbs 2,530 kgs 12,081 lbs 5,479 kgs
MAX. CARGO 47,333 lbs 21,469 kgs 85,800 lbs 38,918 kgs

about Image

  FLAT RACK 20'
COLLAPSIBLE 20'		 FLAT RACK 40'
COLLAPSIBLE 40'
INSIDE LENGTH 18'6" 5.63 m 39'7" 12.06 m
INSIDE WIDTH 7'3" 2.20 m 6'10" 2.08 m
INSIDE HEIGHT 7'4" 2.23 m 6'5" 1.95 m
TARE WEIGHT 6,061 lbs 2,749 kgs 12,787 lbs 5,800 kgs
MAX. CARGO 61,117 lbs 27,722 kgs 85,800 lbs 38,918 kgs

about Image

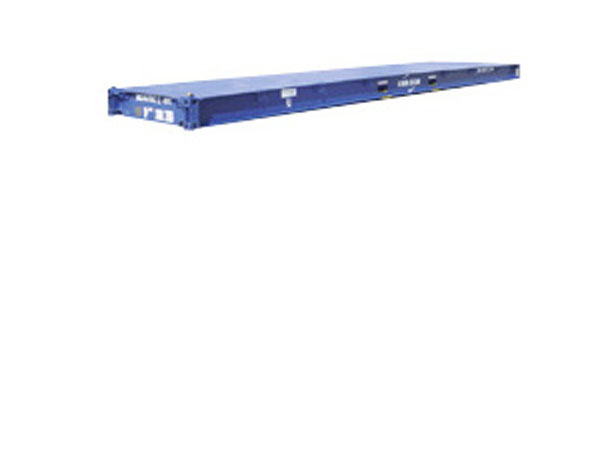

  PLATFORM 20' PLATFORM 40'
INSIDE LENGTH 19'11" 6.07 m 40'0" 12.19 m
INSIDE WIDTH 8'0" 2.43 m 8'0" 2.43 m
INSIDE HEIGHT 7'4" 2.23 m 6'5" 1.95 m
TARE WEIGHT 6,061 lbs 2,749 kgs 12,783 lbs 5,798 kgs
MAX. CARGO 52,896 lbs 23,993 kgs 66,397 lbs 30,117 kgs
